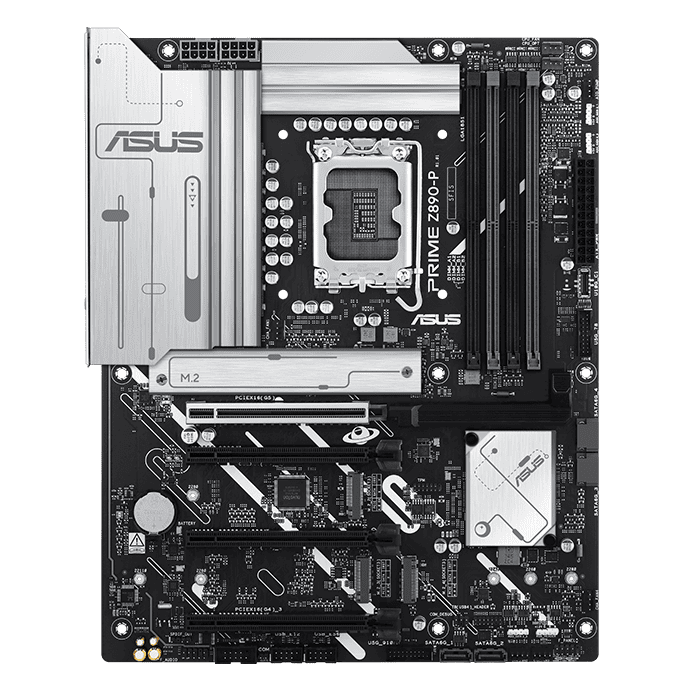

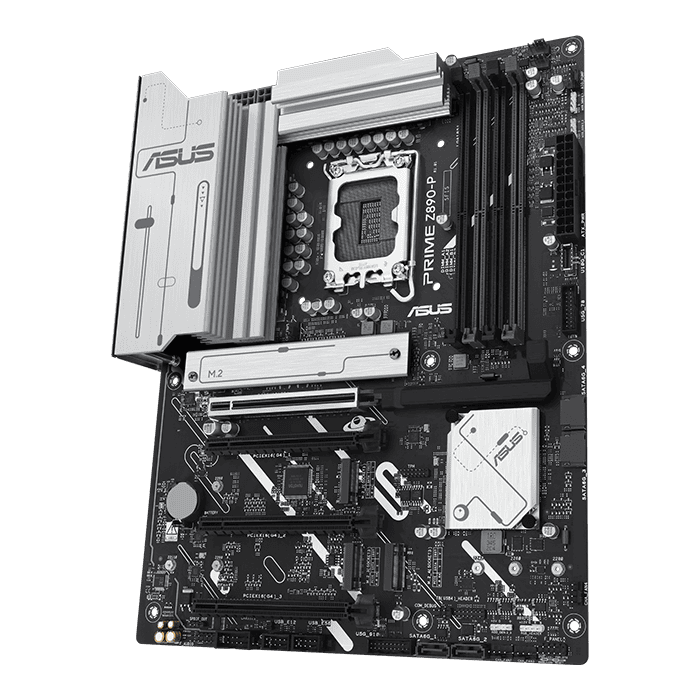

Z890-P
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
AI Solutions
ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance, AI Networking II for real-time bandwidth optimization.
NPU Boost
The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
Cooler by design
The PRIME Z890-P motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
Empowering connections
The PRIME Z890-P motherboard offers a versatile range of connectivity, including support for WiFi 7, the latest version of PCI Express, while an arsenal of USB ports includes Type-C connections, and Thunderbolt 4 which expands compatibility and bandwidth even further.
Personalization
The PRIME Z890-P enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
CPU | Support Intel Core Ultra Processors (Series 2) , LGA1851 |
Chipset | Intel Z890 |
Memory | 4 x DIMM slots, max. 192GB, DDR5 |
Graphics | 1 x HDMI port, 1 x DisplayPort, 1 x Intel Thunderbolt 4 ports (USB Type-C) |
Expansion Slots | 3 |
Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
Wireless & Bluetooth | NA |

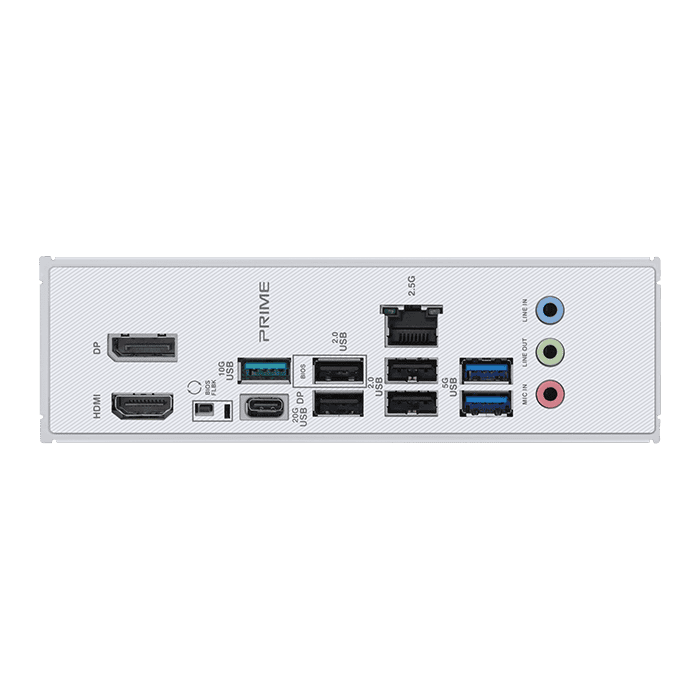

USB | Rear USB (Total 8 ports), Front USB (Total 9 ports) |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIO |
Manageability | WOL by PME, PXE |
Operating System | Windows 11 (22H2 & later) |
Form Factor | ATX Form Factor, 12 inch x 9.6inch ( 30.5 cm x 24.4 cm ) |
