The size of the O11 VISION COMPACT is based on the original from the O11 Dynamic. Its volume has been reduced from 67.8 L (O11 Vision) to 57.4 L, (O11 Vision Compact) making it 10.4 L more compact.
O11 VISION COMPACT enhances your setup with its unique swappable top panels and concealed AIO tubing design, giving your chassis a standout and elegant look.

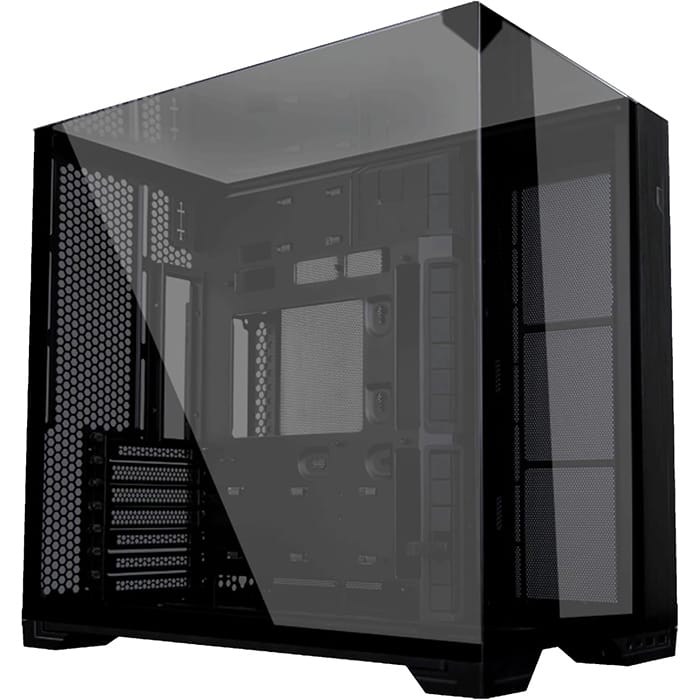

This chassis comes in two colors: black and white. Black version features a tinted glass panel, while the white version comes with clear tempered glass panels along with matching grommets, thumb screws, and brackets.

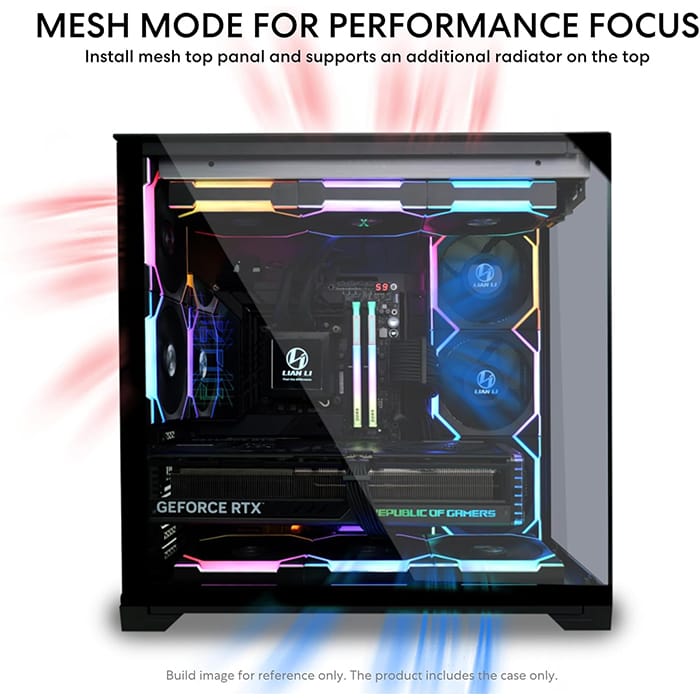

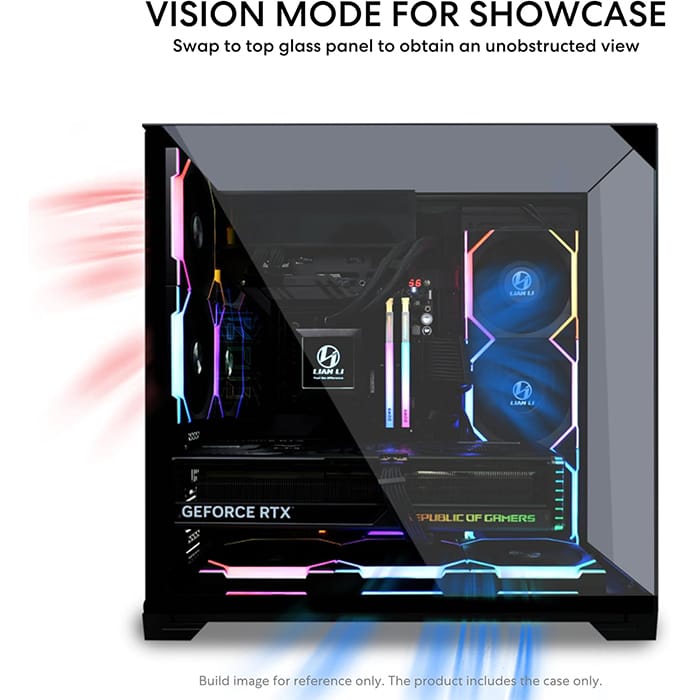

O11 VISION COMPACT offers two different top panel options: a mesh panel designed for top AIO installation, and a tempered glass panel that allows for 270-degree side visibility, showcasing your components beautifully.

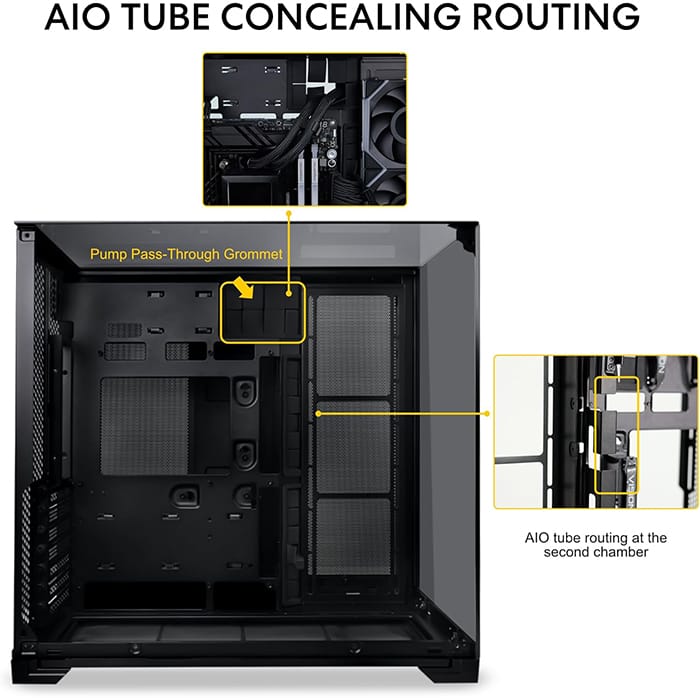

The space above the motherboard can be used to install monitor accessories. There’s also an opening at the back to allow the monitor’s cable to be easily routed to the motherboard’s back IO. Additionally, the AIO tubing can be concealed in the second chamber, while the support for back-connect motherboards ensures a clean and beautiful layout in the main chamber.
MODEL | O11 VISION COMPACT |
MODEL NO. | O11VPX Black |
CASE TYPE | Tower Chassis |
COLOR | Black |
DIMENSIONS | (D)447.5mm x (W)287.5mm x (H)446.4mm |
MATERIAL | Steel, 4.0mm tempered glass, 3.0mm tempered glass, Aluminium |
MOTHERBOARD SUPPORT | Back-Connect ATX/ E-ATX (Under 280mm) / ATX / Micro-ATX / Mini-ITX |
EXPANSION SLOT | 7 |
STORAGE | Behind MB Tray: 2 x 2.5″ SSD Hard drive cage: 2 x 3.5″ HDD or 2.5″ SSD |
RADIATOR SUPPORT | Top: 240mm x 1 or 280mm x 1 or 360mm x 1 Side: 240mm x 1 or 360mm x 1 Bottom: 240mm x 1 or 360mm x 1 |
FAN SUPPORT | Top: 120mm x 3 or 140mm x 2 Side: 120mm x 3 Bottom: 120mm x 3 Rear: 120mm x 2 |
GPU LENGTH CLEARANCE | 408mm (Max.) |
CPU COOLER HEIGHT CLEARANCE | 164mm (Max.) |
PSU SUPPORT | ATX (Under 220mm) |
I/O PORTS | Power Button x 1 USB 3.0 x 2 USB 3.1 TYPE-C x 1 Audio x 1 |
DUST FILTER | Bottom × 1 |
