12VHPWR PCIe connector supports ATX 3.0 and PCIe Gen5 standards
The 16 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems.
Cybenetics Platinum Certified
Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity
Fully modular design with universal EPS / PCIe connector interface
Flat cables have much greater flexibility to allow for tighter folding and management of cable
All Japanese electrolytic capacitors
Ensure reliable power and long-life span
Silent 135mm FDB fan
Built-in 135 mm fan has excellent airflow and low noise, perfect for quiet home or office use
Color | White |
Max. DC Output |
1000W
|
Power density |
517W per liter
|
Input Voltage |
90 ~ 264 Vrms
|
Efficiency | ≥87% & <89% overall efficiency |
Operating temperature | 0°C ~ 50°C |

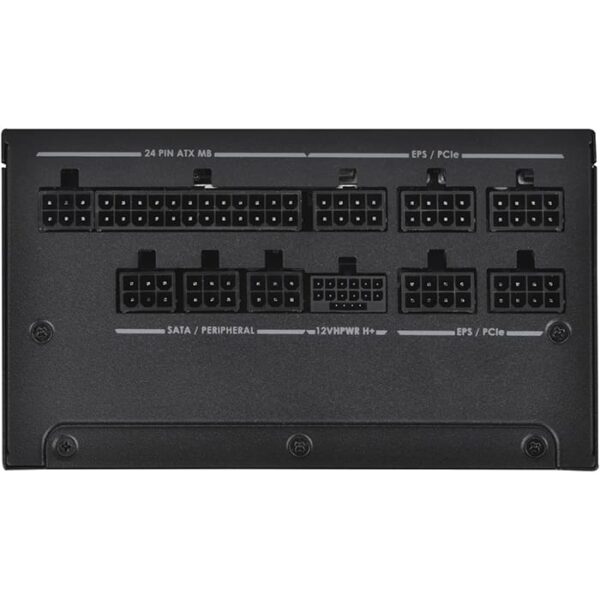

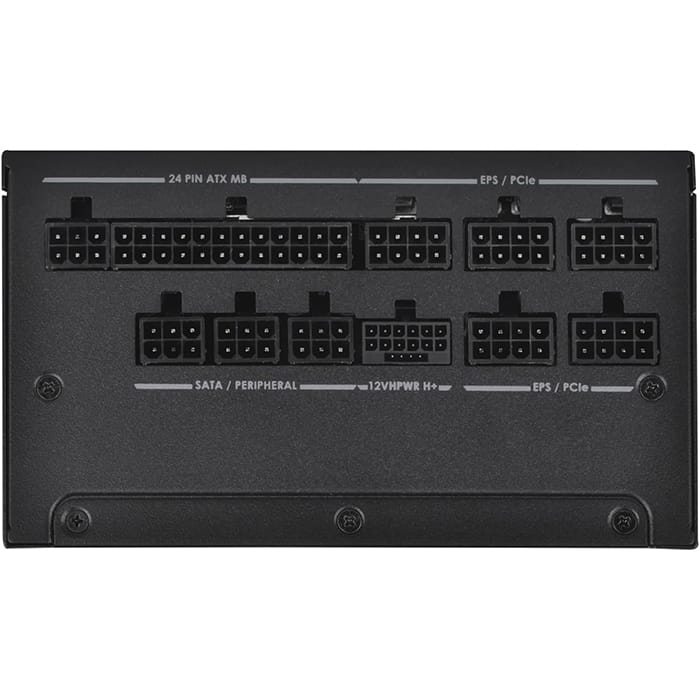

Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 6 x 8 / 6-Pin PCIe connectors 1 x 12+4-Pin 12VHPWR connector 12 x SATA connectors 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy connector |
Form factor | ATX (PS2) |
Weight | 2.88 kg |
Dimension | 150mm (W) × 86mm (H) × 150mm (D) 5.91" (W) x 3.39" (H) x 5.91" (D) |
MTBF | 100,000 hours |
